Máquinas de Roscar

Equipamentos para criar roscas

PNEUMÁTICAS

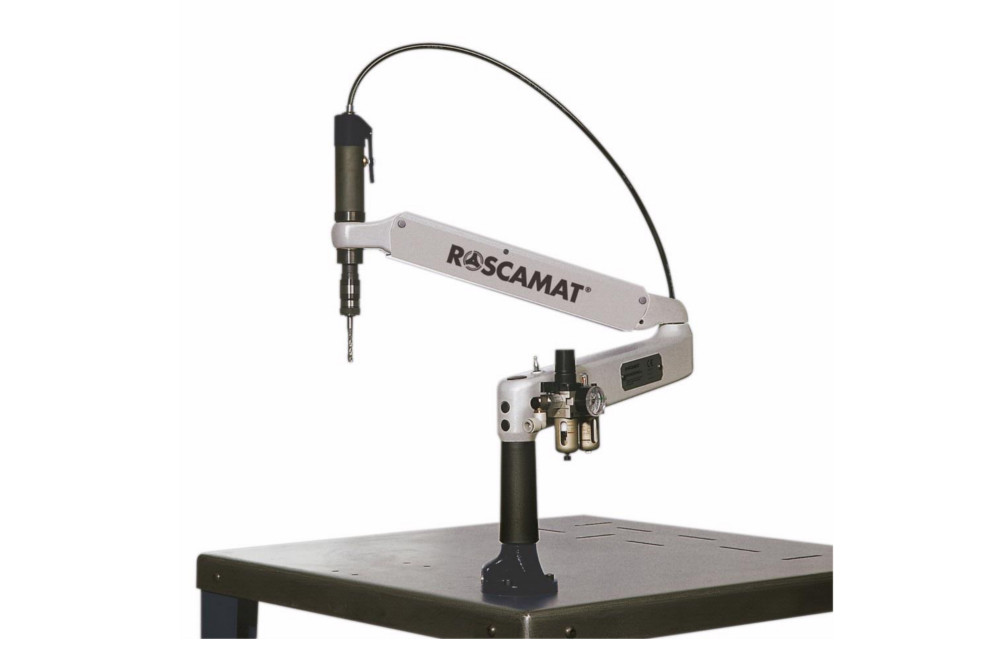

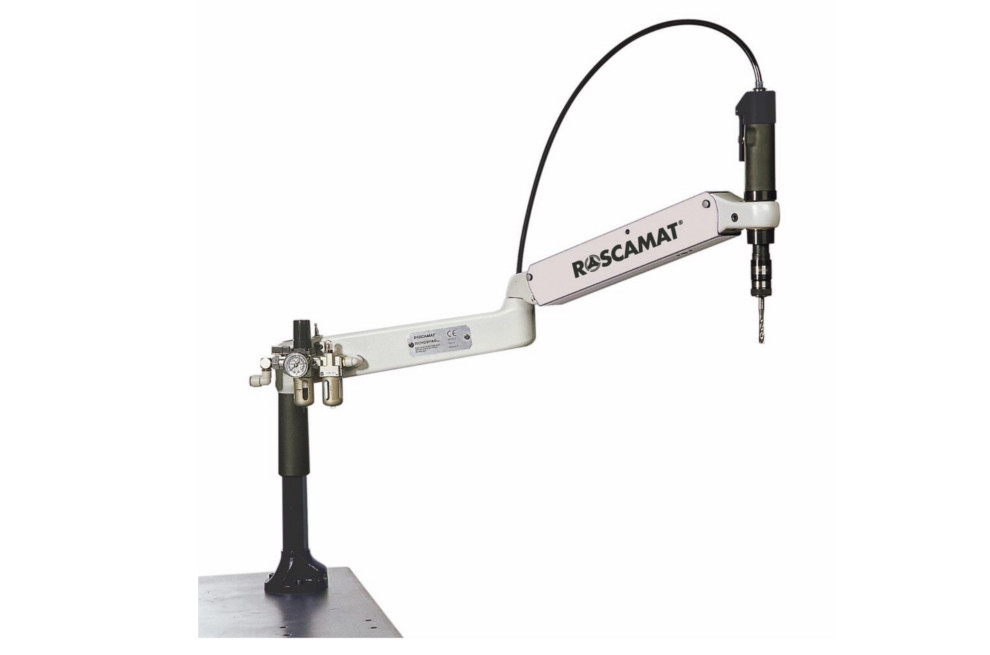

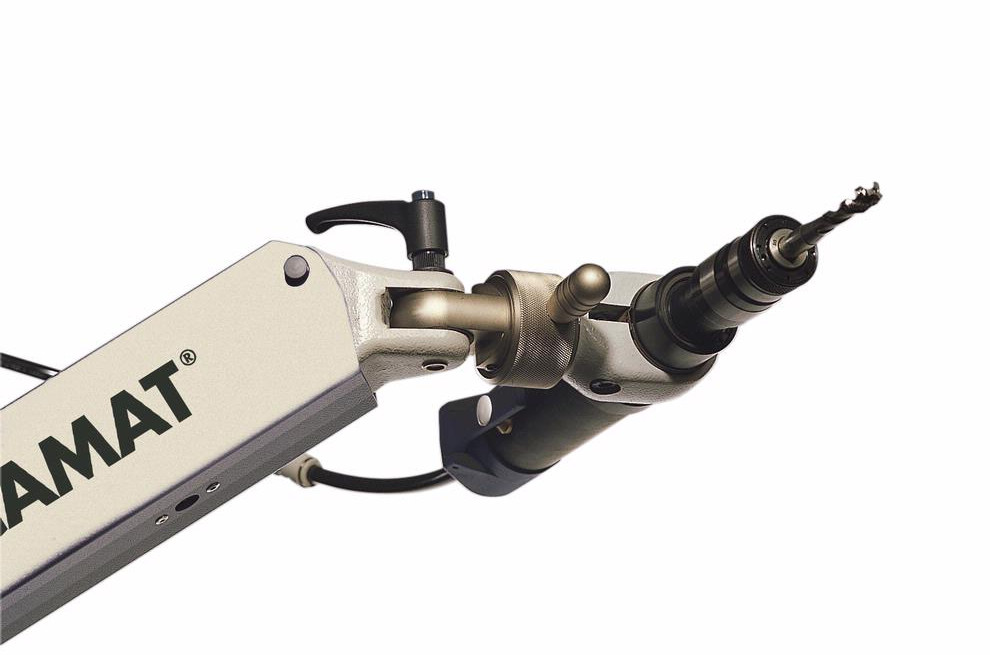

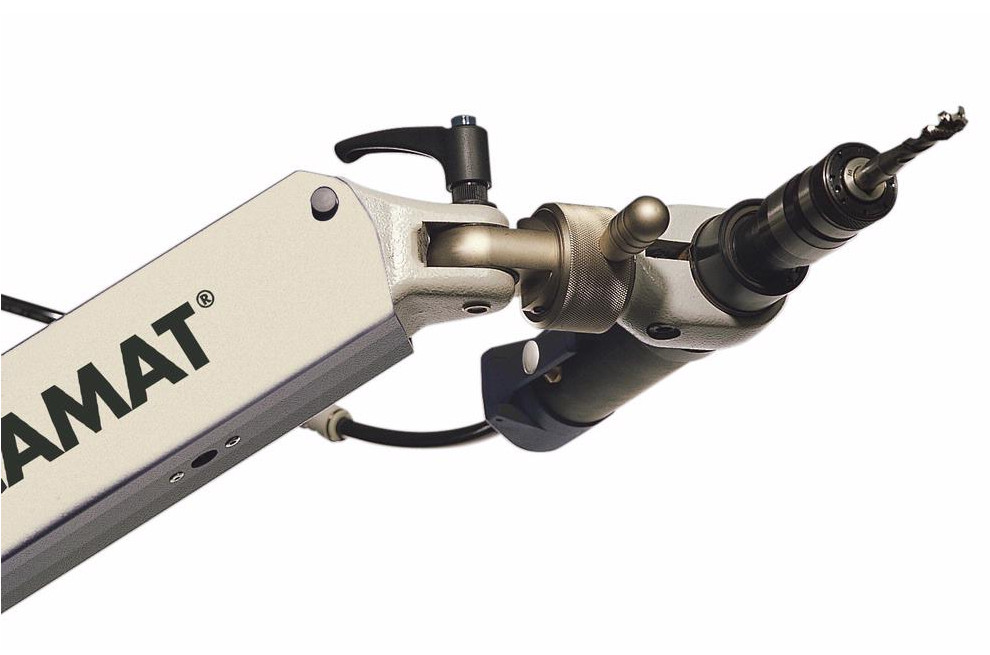

ROSCAMAT 200

This machine consists of a pendular parallelogram that is balanced by a pneumatic spring, plus a radial arm. The gas spring and radial arm assembly fixes the motor head and keeps it perpendicular to the working area. The motor is equipped with a quick-change system and is rotated by compressed air that has previously been filtered and lubricated by a unit for that purpose. Taps and shank tooling fit to the motor's quick-change system by means of tapholders.

+ Info

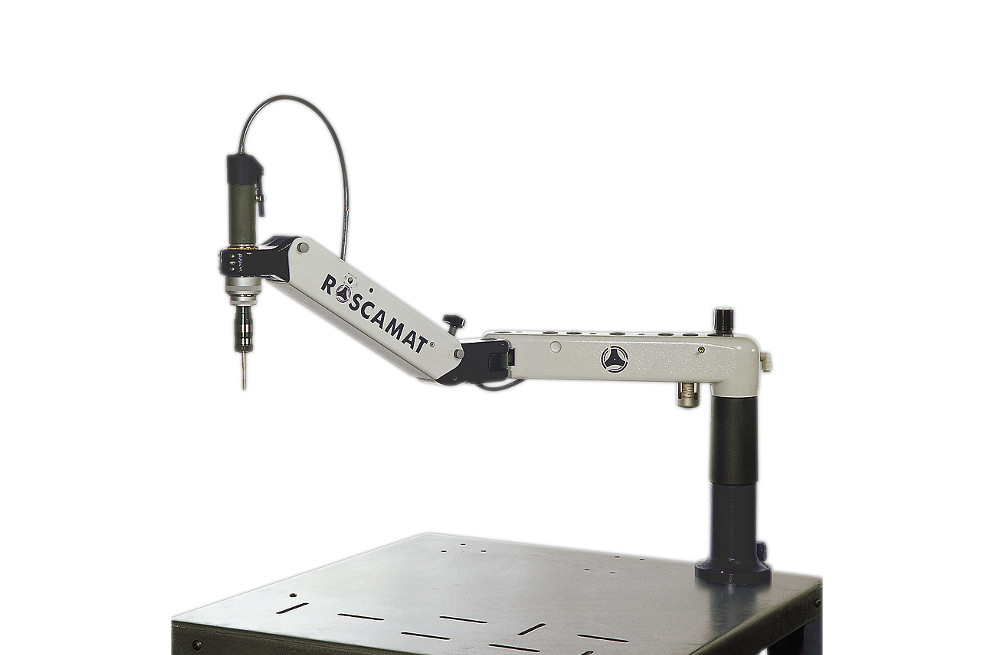

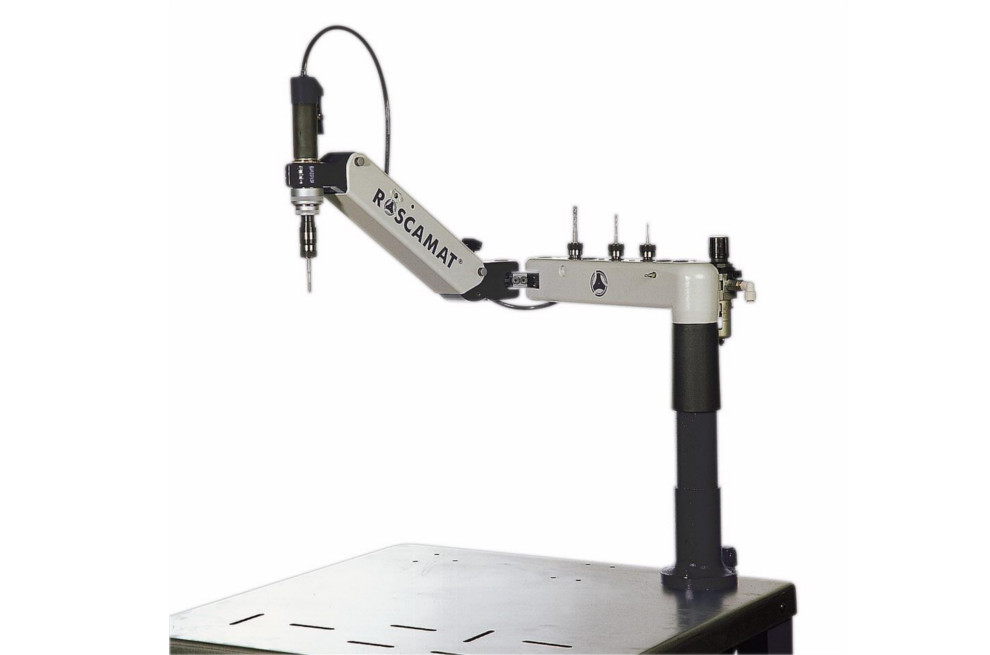

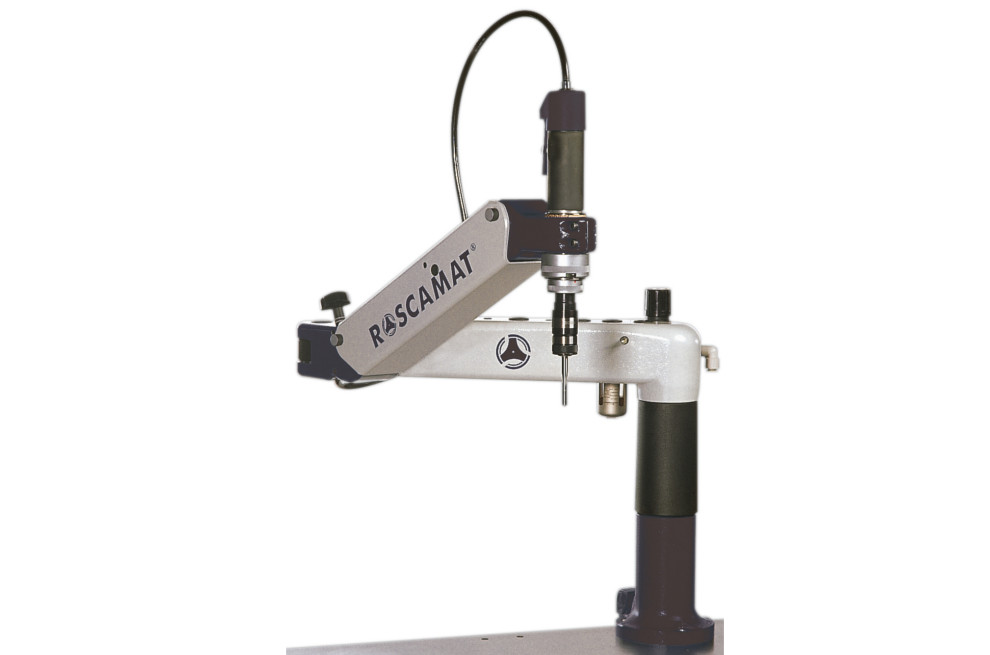

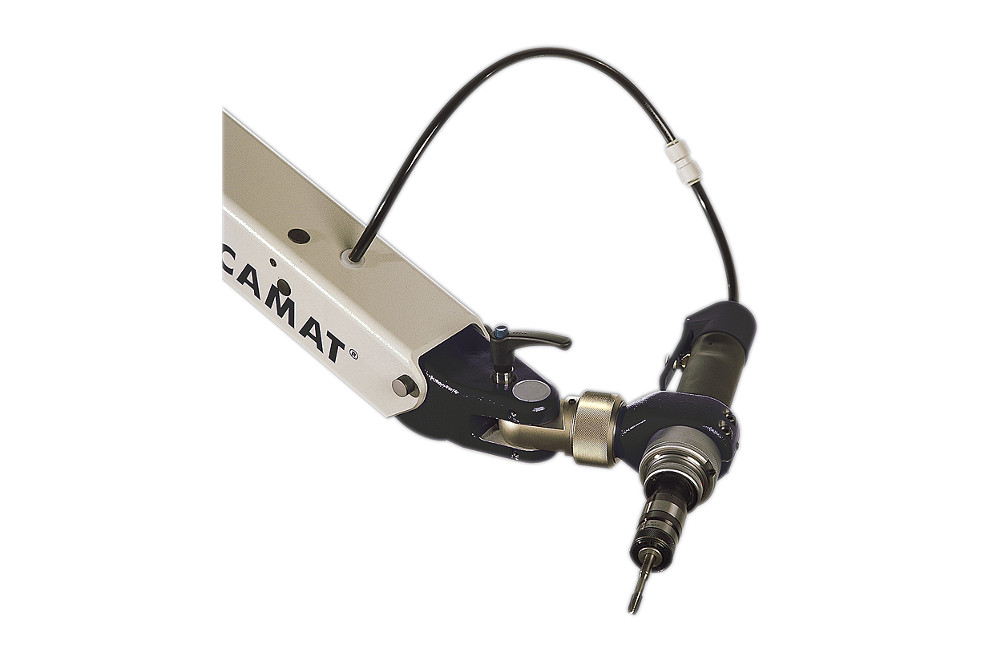

ROSCAMAT 400

The machine, which can be easily fastened to a work bench or table using three M8 screws or a simple fastening clamp, consists of a radial arm with a 360º turning radius. It is connected to a vertically moving swivel arm that always maintains perpendicularity to the reference plane – which is the machine support surface. It is equipped with a pneumatic motor that includes an air unit (lubricator + filter + regulator) for correct operation. The modular system consisting in a series of 7 quick-change modules (reducers) is provided for coupling to said motor. As a result of this 7 output speeds (90, 170, 300, 550, 750, 1050 and 2100 rpm) are available thus allowing to adapt the tap speed to every type of thread. The handle allows to balance the tilting arm and to position it at the operator's convenience. The modular system admits the quick-change tap holders with or without safety clutch depending on the intended job (blind or through holes). Thread capacity from M2 up to M24 (M27)

+ Info

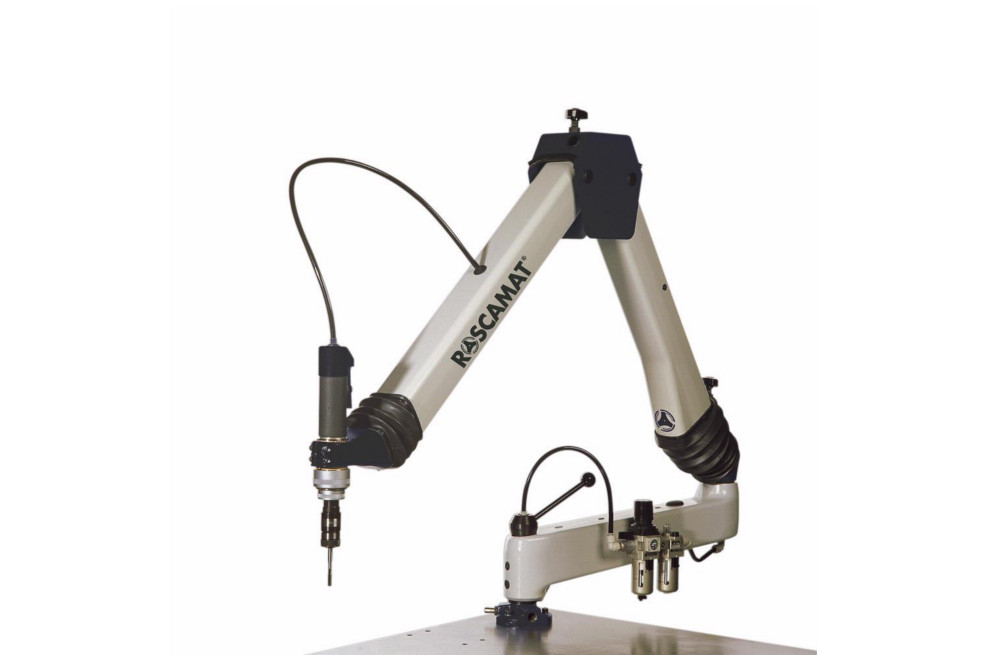

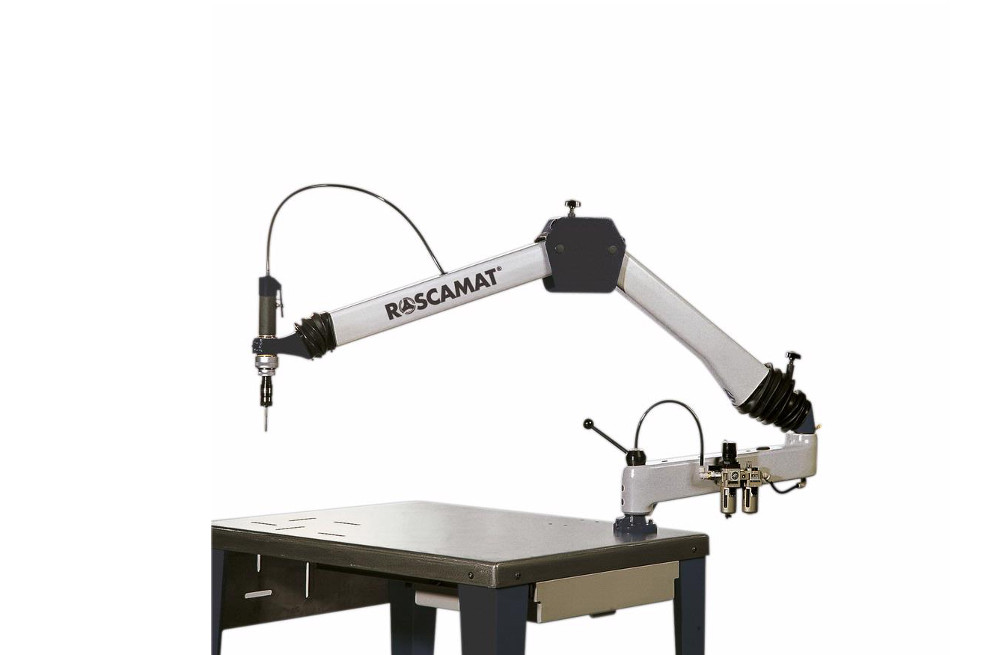

ROSCAMAT 500

As regards performance unit R-500 can be considered identical with unit R-400, with the advantageously bigger working range thanks to the longer arms. The machine consists basically of the following elements: radial arm, lockable elbow joint, tilting arm and head. The compressed-air motor is coupled to the latter. Through the foot and by means of three M8 screws the machine can be fixed to a table or workbench. Such attachment can also be obtained by means of a simple clamp. The radial arm and the tilting arm revolve about themselves. The latter tilts therewith always maintaining the perpendicularity to the foot reference plane.The machine incorporates an air servicing unit (filter + regulator + lubricator) for the correct operation of the motor. The modular system consisting in a series of 7 quick-change modules (reducers) is provided for coupling to said motor. As a result of this 7 output speeds (90, 170, 300, 550, 750, 1050, 2100 rpm) are available thus allowing to adapt the tap speed to every type of thread. The handle allows to balance the tilting arm and to position it at the operator's convenience. The modular system admits the quick-change tap holders with or without safety clutch depending on the intended job (blind or through holes). Threading capacity from M2 up to M24 (M27).

+ Info

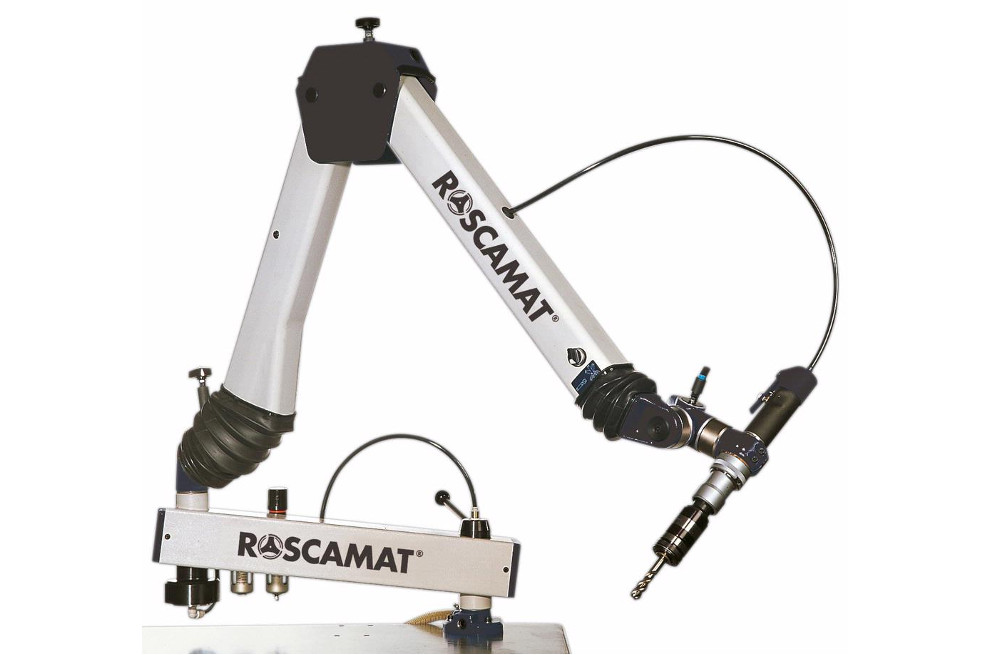

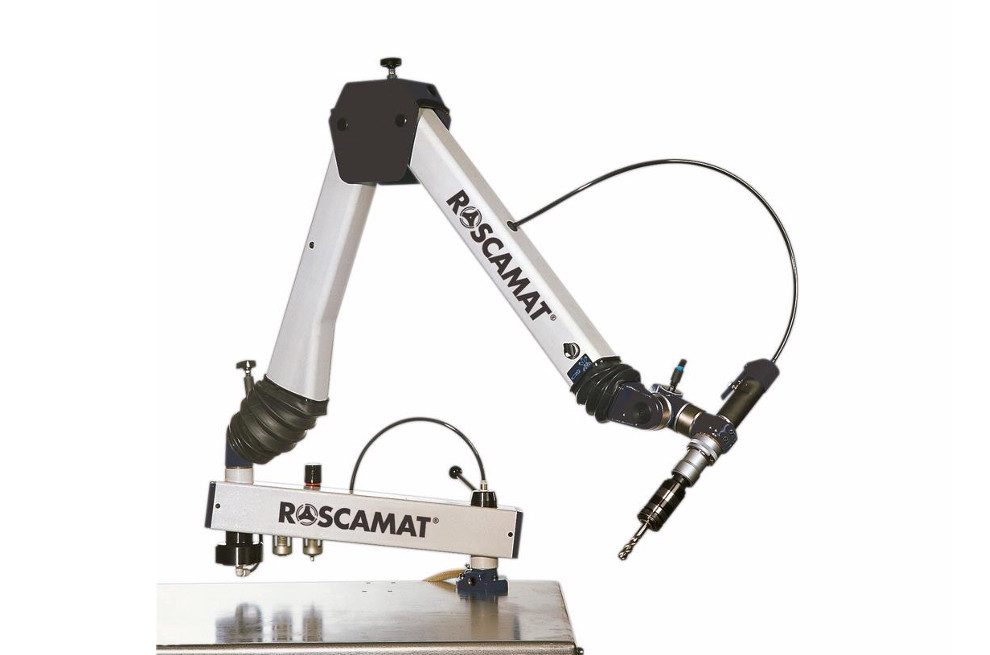

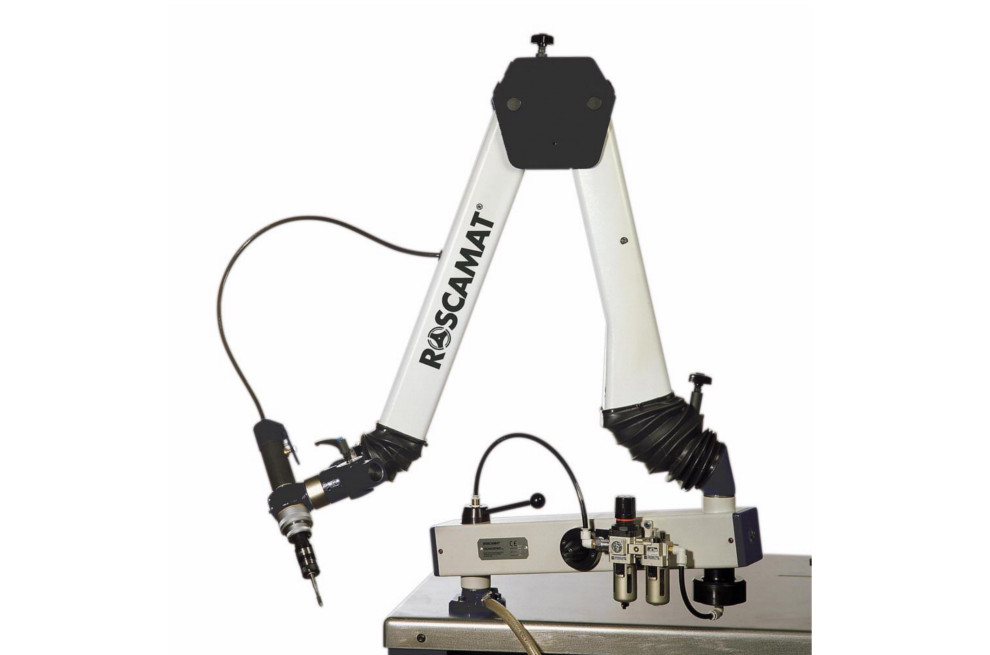

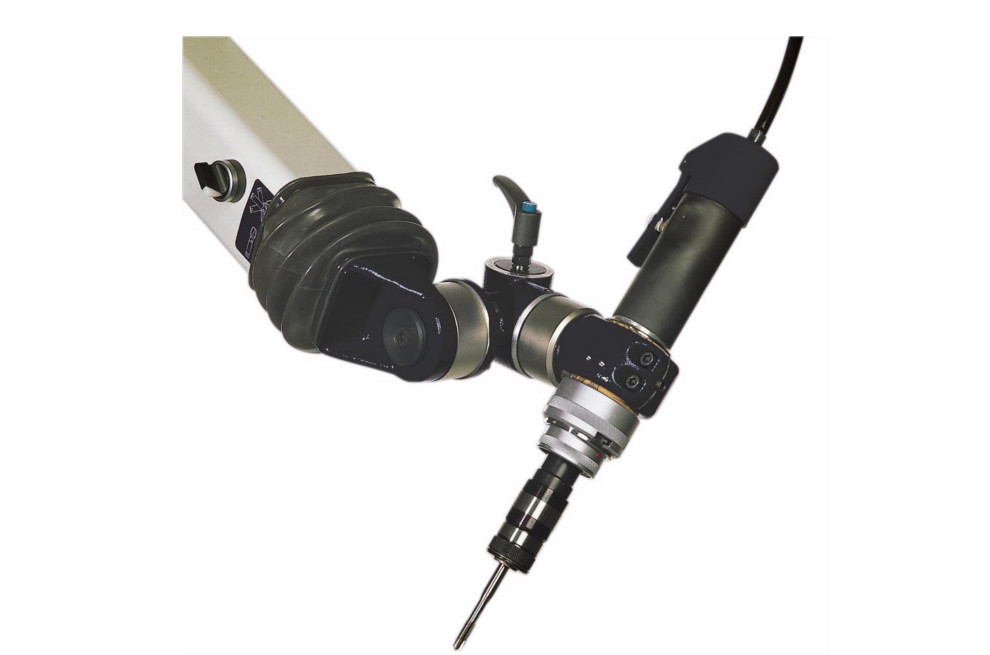

ROSCAMAT 500RH

This is the genuine unit to work in any position in space therewith always maintaining the perpendicularity to the desired plane irrespective of the arm position. The machine consists of a radial arm supporting both articulated arms that can be regulated by means of the regulating valves. The multiposition head is a double swivel joint device allowing to lock and unlock both its swivel pins to thus position the head and keep it quite blocked in order to thus operate in any position in space. The head mechanism is formed by a cam system with an equaliser and disc springs applying a load of 1,000 Kg to two cone sets locking both pins. The radial arm incorporates a chain drive, which is activated or deactivated by means of a face-toothed coupling half according to the intended working position. The machine incorporates an air servicing unit (filter + regulator + lubricator) for the correct operation of the motor. The modular system consisting in a series of 7 quick-change modules (reducers) is provided for coupling to said motor. As a result of this 7 output speeds (90, 170, 300, 550, 750, 1050 and 2100 rpm) are available thus allowing to adapt the tap speed to every type of thread. The modular system admits the quick-change tap holders with or without safety clutch depending on the intended job (blind or through holes). Threading capacity from M3 up to M2 to M24 (M27).

+ Info
